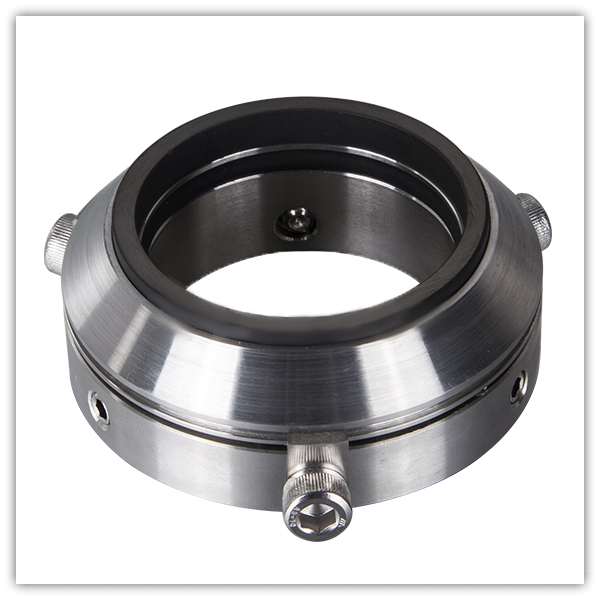

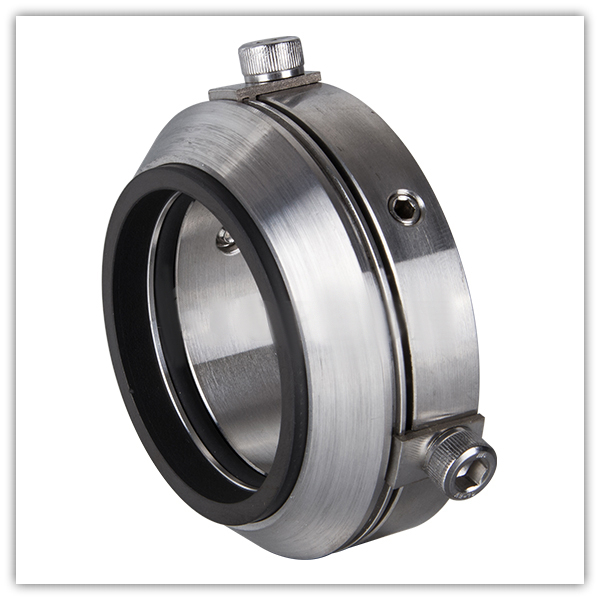

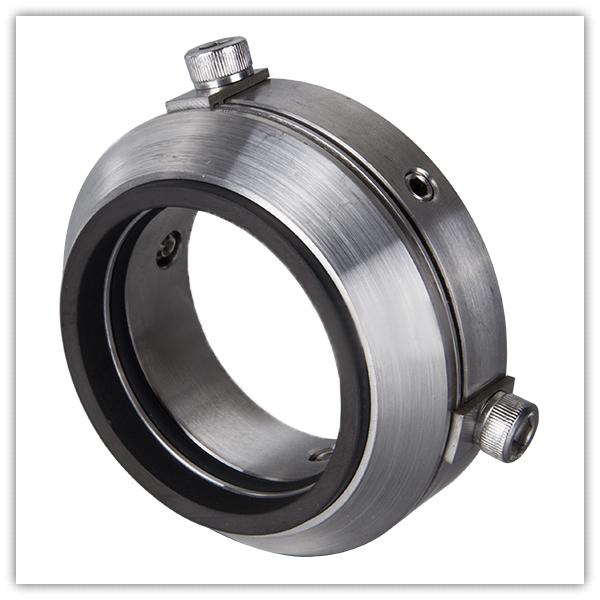

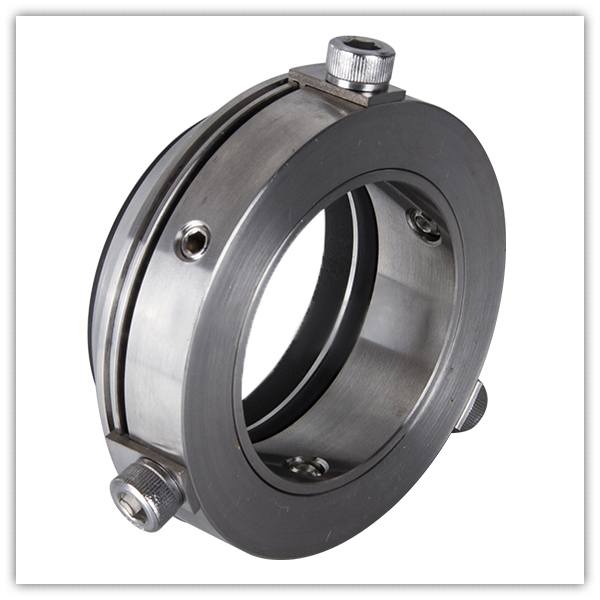

Du kan vara säker på att köpa ZL L9 mekaniska tätningar från oss. Vi ser fram emot att samarbeta med dig, om du vill veta mer kan du rådfråga oss nu, vi kommer att svara dig i tid!
| d(mm) | L1 | D4 | D5 |
| 20 | 27.91 | 45.3 | 59.8 |
| 22 | 27.91 | 47.3 | 61.8 |
| 24 | 27.91 | 49.3 | 63.8 |
| 25 | 27.91 | 50.3 | 64.8 |
| 28 | 27.91 | 53.3 | 67.8 |
| 30 | 27.91 | 55.3 | 69.8 |
| 32 | 27.91 | 57.3 | 71.8 |
| 33 | 27.91 | 58.3 | 72.8 |
| 35 | 27.91 | 60.3 | 74.8 |
| 38 | 27.91 | 63.3 | 77.8 |
| 40 | 27.91 | 65.3 | 79.8 |
| 42 | 27.91 | 67.3 | 81.8 |
| 43 | 27.91 | 68.3 | 82.8 |
| 45 | 27.91 | 70.3 | 84.8 |
| 48 | 27.91 | 73.3 | 87.8 |
| 50 | 27.91 | 75.3 | 89.8 |
| 53 | 27.91 | 78.3 | 92.8 |
| 55 | 27.91 | 80.3 | 94.8 |
| 60 | 27.91 | 85.3 | 99.7 |
| 65 | 30.3 | 96.5 | 111 |
| 70 | 30.28 | 101.5 | 116 |
| 75 | 30.28 | 106.5 | 121 |
| 80 | 30.28 | 111.5 | 126 |
| 85 | 30.28 | 116.5 | 131 |
| 90 | 30.28 | 121.5 | 136 |
| 95 | 30.3 | 126.5 | 141 |
| 100 | 30.28 | 131.5 | 146 |
| d(tum) | L1 | D4 | D5 |
| 0,625” | 1.098 | 1.622 | 2.192 |
| 0,750” | 1.098 | 1.747 | 2.317 |
| 0,875” | 1.098 | 1.872 | 2.442 |
| 1 000" | 1.098 | 1.997 | 2.567 |
| 1,125” | 1.098 | 2.122 | 2.692 |
| 1 250" | 1.098 | 2.247 | 2.817 |
| 1 375" | 1.098 | 2.372 | 2.942 |
| 1 500" | 1.098 | 2.497 | 2.067 |
| 1,625” | 1.098 | 2.622 | 3.192 |
| 1 750" | 1.098 | 2.747 | 3.317 |
| 1,875” | 1.098 | 2.872 | 3.442 |
| 2 000" | 1.098 | 2.997 | 3.567 |
| 2,125” | 1.098 | 3.122 | 3.692 |
| 2 250" | 1.098 | 3.247 | 3.817 |
| 2,375” | 1.098 | 3.372 | 3.942 |
| 2 500" | 1.098 | 3.497 | 4.067 |
| 2,625" | 1.192 | 3.866 | 4.436 |
|
2 750" |
1.192 | 3.991 | 4.561 |
| 2,875” | 1.192 | 4.116 | 4.686 |
| 3 000" | 1.192 | 4.241 | 4.811 |
| 3,125" | 1.192 | 4.366 | 4.936 |
| 3 250" | 1.192 | 4.491 | 5.061 |
| 3,375” | 1.192 | 4.616 | 5.186 |
| 3 500" | 1.192 | 4.741 | 5.311 |
| 3,625" | 1.192 | 4.866 | 5.436 |
| 2 750" | 1.192 | 4.991 | 5.561 |
| 2,875” | 1.192 | 5.116 | 5.686 |
| 4 000" | 1.192 | 5.241 | 5.811 |
